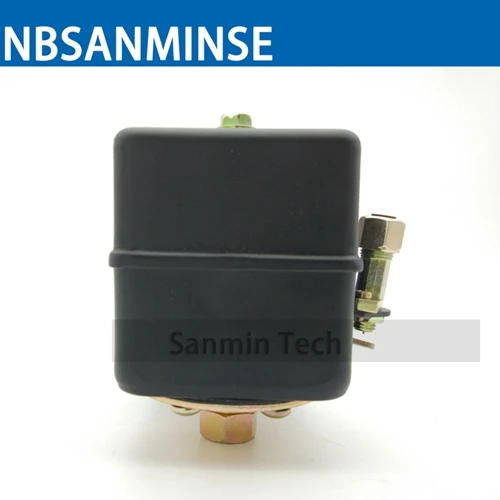

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

Name: NBSANMINSE SMF 17 14 38 NPT Thread Air Compressor Pressure Switch 810bar 812bar 9125bar 1316bar
Brand: NBSANMINSE
Price: 1 USD

Buy cheap NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar product

Brand Name : NBSANMINSE

Model Number : SMF17

Place of Origin : CHINA

Certification : ce

MOQ : 10PCS

Price : Negotiate

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Model : SMF17

Size : NPT 1-4 NPT 3-8 Adapter

Features : Sturdy Painted Steel

Material : Plastic

Contact Now

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

NPT1-4 = NPT 1/4"

NPT 3-8 Adapter = NPT 1/4" to 3/8" Adapter

The rugged SMF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.

Sturdy Stamped Steel Case & Cover Visible Contact

No Drift Pressure Setting Captive Cover nut

Ample Wiring Room 2 Ground Screw

Easy to Adjust Automatic Unloader Valve Available

Pulsation Dampener Standard 5HP Heavy Duty Rating

250 PSI Max

MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating		Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In)PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC	240VAC	Pipe Fittings	Contact Arrangement
SMF17	40	250	25-60	145-175	24A	12A	1/4", 3/8" Male or Female NPT	NC
SMF17-S	15	60	7-15	30-40	24A	12A	1/4", 3/8" Male or Female NPT	NC

Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI

Approval: UL, CSA
